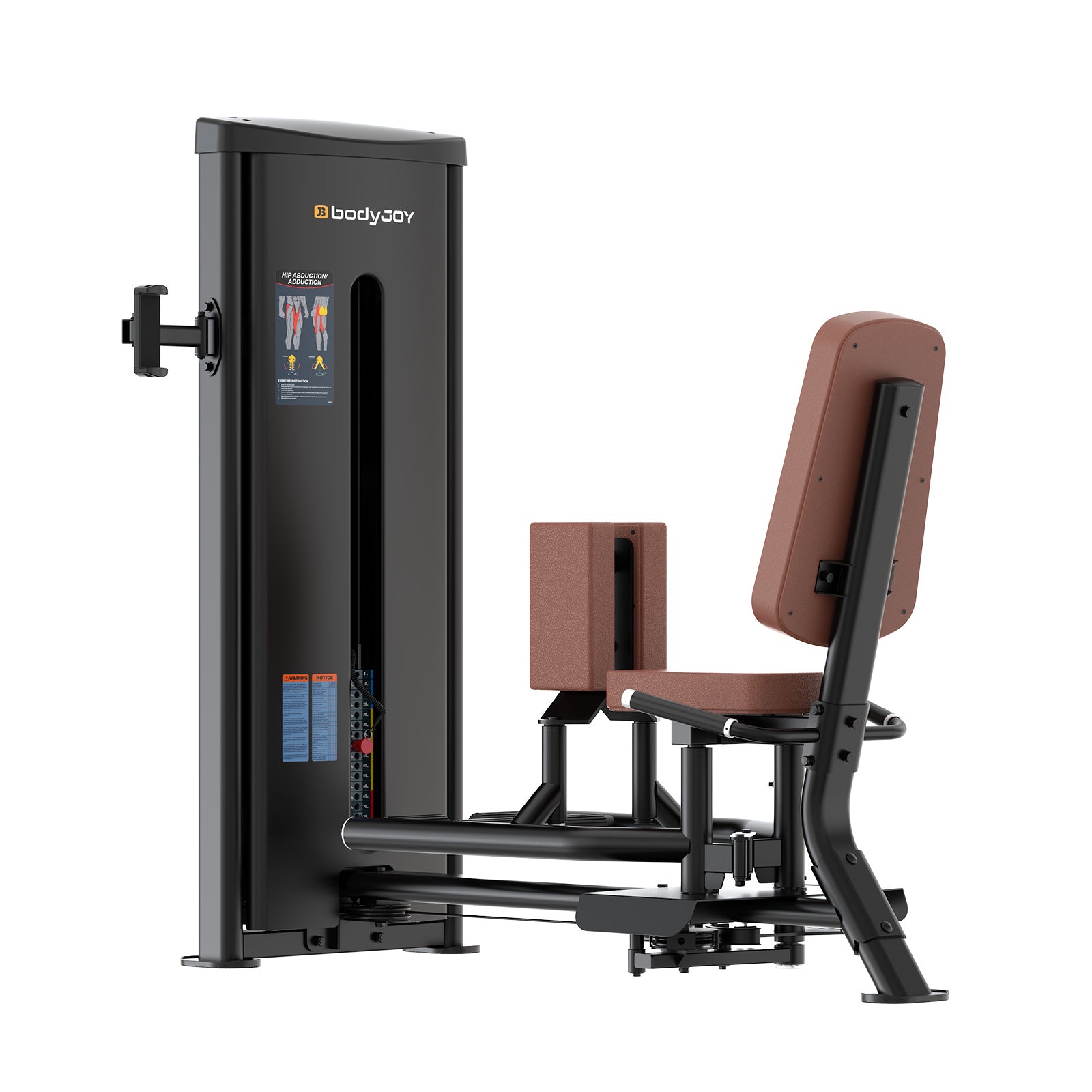

G1-S30

Specifications:

• Main frame material: Q235
• Main rotating shaft material: Q235
• Main shaft bearing: 6005 2RS
• Guide rod: Solid chrome-plated hardened steel
• Specification: φ19 x 2.0 x 1146mm
• Pulley material: PP+PA6+30% fiber
• Protective cover material: Q235
• Thickness: 1.0mm
• Handle cover: TPV
• Steel cable specification: φ4.8*2900mm
• Load-bearing capacity: 1100KG
• End cover material: Aluminum alloy
• Counterweight block material: Steel plate
• Maximum counterweight: 100KG
• Minimum counterweight: 5KG


  [5KG X 19 + 5KG (guide block) X 1]
• Maximum load-bearing capacity: 150KG
• Expanded dimensions: 1620 x 1100 x 1580mm
• Packaging dimensions:


  1615 x 755 x 345mm (1 piece)


  1415 x 725 x 490mm (1 piece)


  275 x 140 x 105mm (4 pieces)
• Gross weight/Net weight: 240KG / 237KG
