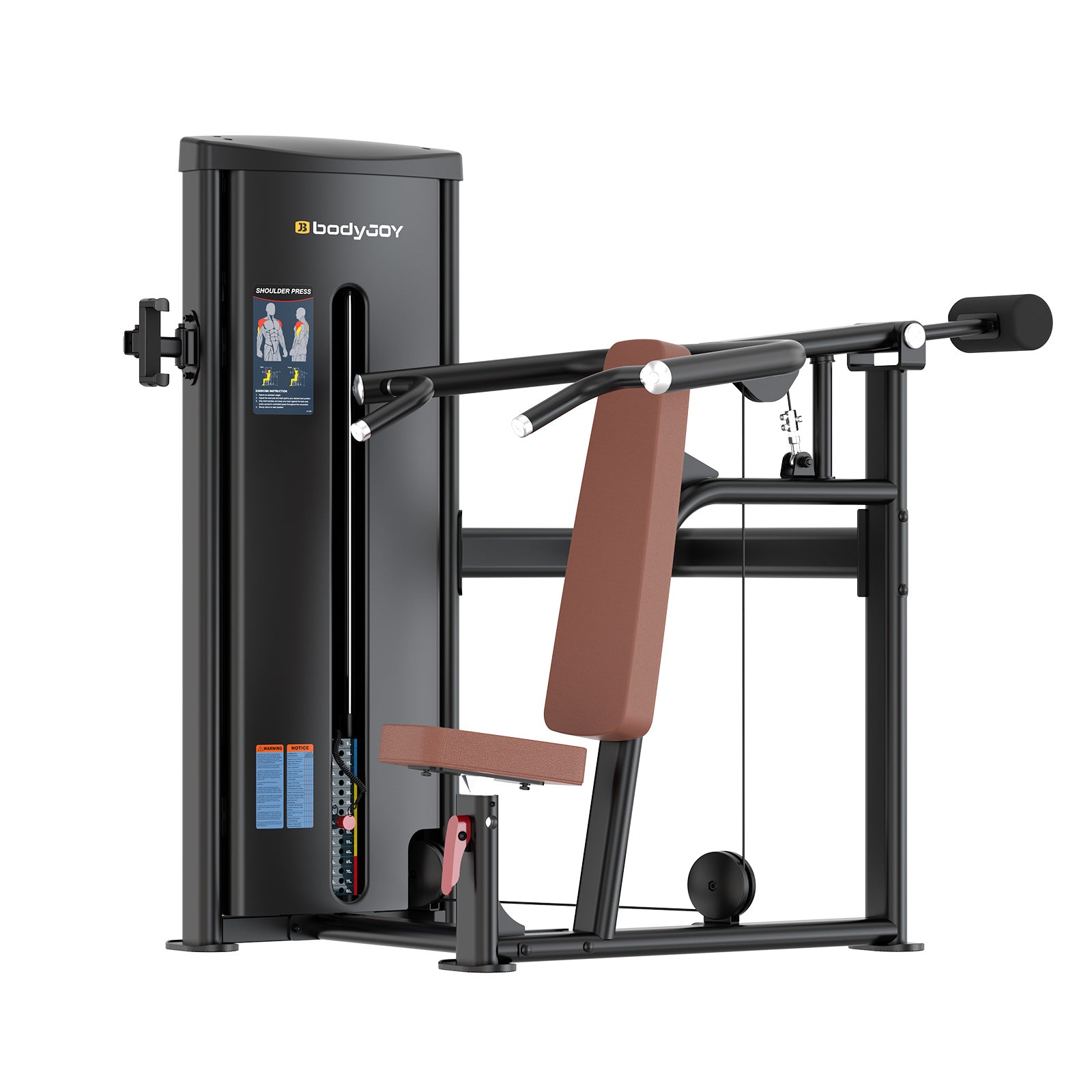

G1-S50

Specifications:

• Main frame material: Q235
• Main rotating shaft material: Q235
• Main shaft bearing: -
• Guide rod: Solid chrome-plated hardened steel
• Specification: φ19 x 2.0 x 1252mm
• Pulley material: PP+PA6+30% fiber
• Protective cover material: Q235
• Thickness: 1.0mm
• Handle cover: TPV
• Steel cable specification: φ4.8*4555mm
• Load-bearing capacity: 1100KG
• End cover material: Aluminum alloy
• Counterweight block material: Steel plate
• Maximum counterweight: 100KG
• Minimum counterweight: 5KG


  [5KG X 19 + 5KG (guide block) X 1]
• Maximum load-bearing capacity: 150KG
• Expanded dimensions: 1360 x 1345 x 1580mm
• Packaging dimensions:


  1590 x 745 x 365mm (1 piece)


  1345 x 1185 x 270mm (1 piece)


  275 x 140 x 105mm (4 pieces)
• Gross weight/Net weight: 237KG / 216KG
